• Rear axle, 3.42 ratio
• Pickup box, Wideside
• GVWR, 7200 lbs. (3266 kg) (Requires 4WD models.)
• Air cleaner, high-capacity
• Hill Descent Control
• Differential, heavy-duty locking rear
• Transfer case, 4WD, active electronic Autotrac with rotary dial control (Included with 4WD models only.)
• Suspension, MagneRide Magnetic Ride Control with MagneRide branded shock absorbers
• Four wheel drive
• Alternator, 150 amps
• Battery, heavy-duty 720 cold-cranking amps/80 Amp-hr, maintenance-free with rundown protection and retained accessory power
• Frame, fully-boxed, hydroformed front section
• Underbody Shield, frame-mounted shields includes front underbody shield starting behind front bumper and running to first cross-member, protecting front underbody, oil pan, differential case and transfer case (Standard on 4WD models only.)
• Recovery hooks, front, frame-mounted, black
• Cargo tie downs (4), movable upper
• Steering, Electric Power Steering (EPS) assist, rack-and-pinion
• Brakes, 4-wheel disc with DURALIFE rotors, 4-wheel antilock
• Exhaust, aluminized stainless-steel muffler and tailpipe

• Wheels, 20" x 9" (50.8 cm x 22.9 cm) ultra bright-machined aluminum
• Tires, P275/55R20 all-season, blackwall
• Wheelhouse liners, rear (Not available with dual rear wheels.)
• Tire, spare P265/70R17 all-season, blackwall
• Tire carrier lock keyed cylinder lock that utilizes same key as ignition and door
• Bumper, front, body-color
• Bumper, rear body-color with bumper CornerSteps
• CornerStep, rear bumper
• Assist steps, chromed tubular, 6" rectangular (factory installed) (May delete (BVQ) and add LPO assist steps (VXJ) by selecting (R8M) BVQ assist step delete.)
• Moldings, bodyside, chrome
• Grille, Denali Chrome
• Headlamps, halogen projector with LED signature
• Fog lamps, front, halogen
• Lamps, cargo area, cab mounted with switch on center switch bank
• Mirrors, outside chrome cap, heated power-adjustable, power-folding and driver-side auto-dimming with integrated turn signal indicators and puddle lamps (includes driver's side spotter mirror)
• Mirror caps, chrome
• Window, power, rear sliding with rear defogger (Not included when (VYU) Snow Plow Prep Package is ordered.)
• Glass, deep-tinted
• LED Lighting, cargo box with switch on center switch bank
• Tailgate and bed rail protection caps, top
• Tailgate, locking utilizes same key as ignition and door
• Tailgate, EZ-Lift and Lower
• Door handles, chrome
• Bed Liner, Spray-on Pickup box bed liner consisting of high pressure, chemically bonded, sprayed-on polyurea & polyurethane liner formulation. Liner is permanently bonded to the truck bed providing a water tight seal. Includes embossed Denali logo on front bed wall. The textured, non-skid surface is black in color and robotically applied to yield consistent 90 mil floor and tailgate thickness along with 50 mil box sidewall thickness. Spray-on liner covers entire bed interior surface below side rails, including tailgate, front box top rail, gage hole plugs and lower tie down loops. (Not available with (VBN) bed rug, LPO, (VUK) tailgate liner, LPO or (VZX) bed liner, LPO.)

• Audio system, 8" Diagonal Color Touch Screen Navigation with IntelliLink, AM/FM/SiriusXM with USB ports, auxiliary jack, SD card slot, Bluetooth® streaming audio for music and most phones, hands-free smartphone integration, Pandora Internet radio and voice-activated technology for radio and phone
• SiriusXM Satellite Radio is standard on nearly all 2015 GM models. Enjoy a 3-month All Access trial subscription with over 150 channels including commercial-free music, plus sports, news and entertainment. Plus you can listen to SiriusXM Internet Radio everywhere on your computer, smartphone or tablet. Welcome to the world of SiriusXM. (IMPORTANT: If you decide to continue your service at the end of your trial subscription, the plan you choose will automatically renew and bill at then-current rates until you call 1-877-209-0079 to cancel. See SiriusXM "Terms & Conditions" for complete terms at siriusxm.com. Other fees and taxes will apply. All fees and programming subject to change.)
• Bose Sound with 6 speaker system (7 speaker system including subwoofer when ordered with bucket seats)
• Single-slot CD/MP3 player (Replaced by (U42) rear seat DVD/Blu-Ray Entertainment Package when (U42) is ordered.)
• Bluetooth® for phone personal cell phone connectivity to vehicle audio system
• Steering wheel audio controls

• Seats, front full-feature leather-appointed bucket with (KA1) heated seat cushions and seat backs. Includes 12-way power driver and front passenger seat adjusters, including 2-way power lumbar control, 2-position driver memory, adjustable head restraints, (D07) floor console and storage pockets.
• OnStar with 4G LTE provides a built-in Wi-Fi hotspot to connect to the internet at 4G LTE speeds (Visit www.onstar.com for vehicle availability, details and system limitations. Services and connectivity may vary by model and conditions. 4G LTE service available in select markets. 4G LTE performance based on industry averages and vehicle systems design. Some services require data plan.)
• Seating, heated and cooled perforated leather-appointed front bucket
• Seat, rear 60/40 folding bench (folds up), 3-passenger (includes child seat top tether anchor)
• Console, floor mounted, reconfigurable with moveable cup holders, cell phone storage, power cord management and hanging file holder capability
• Floor covering, color-keyed carpeting
• Floor mats, color-keyed carpeted first and second row
• Steering column, manual Tilt-Wheel and telescoping
• Steering wheel, leather-wrapped with audio and cruise controls
• Steering wheel, heated
• Display, customizable driver display, 8" multi-color configurable
• Windows, power with driver express up and down and express down on all other windows
• Door locks, power
• Pedals, power-adjustable
• Remote Keyless Entry
• Remote vehicle starter system
• Universal Home Remote (Not included when (VYU) Snow Plow Prep Package is ordered.)
• Cruise control, steering wheel-mounted
• Theft-deterrent system, unauthorized entry
• Air conditioning, dual-zone automatic climate control
• Defogger, rear-window electric
• Power outlet, 110-volt AC
• Mirror, inside rearview auto-dimming
• Visors, driver and front passenger illuminated vanity mirrors
• Assist handle, front passenger and driver on A-pillars
• OnStar Directions and Connections plan for 6 months including Automatic Crash Response, Stolen Vehicle Assistance, Roadside Assistance and Turn-by-Turn Navigation (Visit www.onstar.com for vehicle availability, details and system limitations. Services may vary by model and conditions.)
• Front and Rear Park Assist, Ultrasonic

• StabiliTrak, stability control system with Proactive Roll Avoidance and traction control, includes electronic trailer sway control and hill start assist
• Daytime Running Lamps with automatic exterior lamp control
• Air bags, dual-stage frontal airbags for driver and front passenger, seat-mounted side-impact airbags for driver and front outboard passenger, and head-curtain airbags for front and rear outboard seating positions; includes right-front airbag Passenger Sensing System (Always use safety belts and child restraints. Children are safer when properly secured in a rear seat in the appropriate child restraint. See the Owner's Manual for more information.)
• Air bag, Passenger Sensing System
• Rear Vision Camera with dynamic guide lines
• Tire Pressure Monitoring System (does not apply to spare tire) (On 3500HD, included and only available with (C7A) 10,000 lb. GVWR.)

ENGINE, 5.3L ECOTEC3 V8 WITH ACTIVE FUEL MANAGEMENT, DIRECT INJECTION

• and Variable Valve Timing
• includes aluminum block construction (355 hp [265 kW] @ 5600 rpm
• 383 lb-ft of torque [518 Nm] @ 4100 rpm; more than 300 lb-ft of torque from 2000 to 5600 rpm) (STD)

• Trailering equipment includes trailer hitch
• 7-pin and 4-pin connectors
• Engine
• 5.3L EcoTec3 V8 with Active Fuel Management
• Direct Injection and Variable Valve Timing
• includes aluminum block construction (355 hp [265 kW] @ 5600 rpm
• 383 lb-ft of torque [518 Nm] @ 4100 rpm; more than 300 lb-ft of torque from 2000 to 5600 rpm)
• Rear axle
• 3.42 ratio
• Pickup box
• Wideside
• GVWR
• 7200 lbs. (3266 kg) (Requires 4WD models.)
• Air cleaner
• high-capacity
• Hill Descent Control
• Differential
• heavy-duty locking rear
• Suspension
• MagneRide Magnetic Ride Control with MagneRide branded shock absorbers
• Cooling
• external engine oil cooler
• Cooling
• auxiliary external transmission oil cooler
• Alternator
• 150 amps
• Battery
• heavy-duty 720 cold-cranking amps/80 Amp-hr
• maintenance-free with rundown protection and retained accessory power
• Frame
• fully-boxed
• hydroformed front section
• Underbody Shield
• frame-mounted shields includes front underbody shield starting behind front bumper and running to first cross-member
• protecting front underbody
• oil pan
• differential case and transfer case (Standard on 4WD models only.)
• Cargo tie downs (4)
• movable upper
• Steering
• Electric Power Steering (EPS) assist
• rack-and-pinion
• Brakes
• 4-wheel disc with DURALIFE rotors
• 4-wheel antilock
• Exhaust
• aluminized stainless-steel muffler and tailpipe
• LPO
• Polished exhaust tip (dealer installed) (Requires gas engine.)
• Wheel
• full-size spare
• 17" x 7" (43.2 cm x 17.8 cm) aluminum (Included and only available with model K15543 and (L83) 5.3L EcoTec3 V8 engine.)
• Wheelhouse liners
• rear (Not available with dual rear wheels.)
• Tire carrier lock keyed cylinder lock that utilizes same key as ignition and door
• Bumper
• front
• body-color
• Bumper
• rear body-color with bumper CornerSteps
• CornerStep
• rear bumper
• Moldings
• bodyside
• chrome
• Grille
• Denali Chrome
• Headlamps
• halogen projector with LED signature
• Fog lamps
• front
• halogen
• Lamps
• cargo area
• cab mounted with switch on center switch bank
• Mirrors
• outside chrome cap
• heated power-adjustable
• power-folding and driver-side auto-dimming with integrated turn signal indicators and puddle lamps (includes driver's side spotter mirror)
• Mirror caps
• chrome
• Glass
• deep-tinted
• LED Lighting
• cargo box with switch on center switch bank
• Tailgate and bed rail protection caps
• top
• Tailgate
• locking utilizes same key as ignition and door
• Tailgate
• EZ-Lift and Lower
• Door handles
• chrome
• Bed Liner
• Spray-on Pickup box bed liner consisting of high pressure
• chemically bonded
• sprayed-on polyurea & polyurethane liner formulation. Liner is permanently bonded to the truck bed providing a water tight seal. Includes embossed Denali logo on front bed wall. The textured
• non-skid surface is black in color and robotically applied to yield consistent 90 mil floor and tailgate thickness along with 50 mil box sidewall thickness. Spray-on liner covers entire bed interior surface below side rails
• including tailgate
• front box top rail
• gage hole plugs and lower tie down loops. (Not available with (VBN) bed rug
• LPO
• (VUK) tailgate liner
• LPO or (VZX) bed liner
• LPO.)
• Bose Sound with 6 speaker system (7 speaker system including subwoofer when ordered with bucket seats)
• Seat
• rear 60/40 folding bench (folds up)
• 3-passenger (includes child seat top tether anchor)
• Console
• floor mounted
• reconfigurable with moveable cup holders
• cell phone storage
• power cord management and hanging file holder capability
• Floor covering
• color-keyed carpeting
• Steering column
• manual Tilt-Wheel and telescoping
• Steering wheel
• heated
• Instrumentation
• 6-gauge cluster featuring speedometer
• fuel level
• engine temperature
• tachometer
• voltage and oil pressure
• Display
• customizable driver display
• 8" multi-color configurable
• Windows
• power with driver express up and down and express down on all other windows
• Pedals
• power-adjustable
• Remote vehicle starter system
• Universal Home Remote (Not included when (VYU) Snow Plow Prep Package is ordered.)
• Theft-deterrent system
• unauthorized entry
• Air conditioning
• dual-zone automatic climate control
• Power outlet
• 110-volt AC
• Mirror
• inside rearview auto-dimming
• Visors
• driver and front passenger illuminated vanity mirrors
• Assist handle
• front passenger and driver on A-pillars
• Front and Rear Park Assist
• Ultrasonic
• StabiliTrak
• stability control system with Proactive Roll Avoidance and traction control
• includes electronic trailer sway control and hill start assist
• Daytime Running Lamps with automatic exterior lamp control
• Rear Vision Camera with dynamic guide lines
• Tire Pressure Monitoring System (does not apply to spare tire) (On 3500HD
• included and only available with (C7A) 10
• 000 lb. GVWR.)

• Mileage
• Fuel Economy Est-Combined (MPG): 18
• EPA Fuel Economy Est - City (MPG): 16
• EPA Fuel Economy Est - Hwy (MPG): 22
• Electrical
• Cold Cranking Amps @ 0° F (Primary): 720
• Maximum Alternator Capacity (amps): 150
• Maximum Alternator Watts: - TBD -
• Cooling System
• Total Cooling System Capacity (qts): - TBD -
• Weight Information
• Gross Axle Wt Rating - Front (lbs): 3950
• Gross Axle Wt Rating - Rear (lbs): 3950
• Curb Weight - Front (lbs): - TBD -
• Curb Weight - Rear (lbs): - TBD -
• Gross Vehicle Weight Rating Cap (lbs): 7200
• Gross Combined Wt Rating (lbs): 15000
• Trailering
• Dead Weight Hitch - Max Trailer Wt. (lbs): 5000
• Dead Weight Hitch - Max Tongue Wt. (lbs): 500
• Wt Distributing Hitch - Max Trailer Wt. (lbs): 9200
• Wt Distributing Hitch - Max Tongue Wt. (lbs): 920
• Maximum Trailering Capacity (lbs): 9200
• Suspension
• Suspension Type - Front: Independent
• Suspension Type - Rear: 2-Stage Multi-Leaf
• Spring Capacity - Front (lbs): 3950
• Spring Capacity - Rear (lbs): 3950
• Axle Type - Front: Independent Driving
• Axle Type - Rear: Semi-floating
• Axle Capacity - Front (lbs): 3950
• Axle Capacity - Rear (lbs): 3950
• Axle Ratio (:1) - Front: 3.42
• Axle Ratio (:1) - Rear: 3.42
• Shock Absorber Diameter - Front (mm): 46.00
• Shock Absorber Diameter - Rear (mm): 35.00
• Stabilizer Bar Diameter - Front (in): 1.35
• Brakes
• Brake Type: Pwr
• Brake ABS System: 4-Wheel
• Disc - Front (Yes or ): Yes
• Disc - Rear (Yes or ): Yes
• Front Brake Rotor Diam x Thickness (in): 13.00 x 1.18
• Rear Brake Rotor Diam x Thickness (in): 13.60 x 0.79
• Tires
• Front Tire Order Code: QSS
• Rear Tire Order Code: QSS
• Spare Tire Order Code: RC4
• Front Tire Size: P275/55R20
• Rear Tire Size: P275/55R20
• Spare Tire Size: P265/70R17
• Front Tire Capacity (lbs): - TBD -
• Rear Tire Capacity (lbs): - TBD -
• Spare Tire Capacity (lbs): - TBD -
• Revolutions/Mile @ 45 mph - Front: - TBD -
• Revolutions/Mile @ 45 mph - Rear: - TBD -
• Revolutions/Mile @ 45 mph - Spare: - TBD -
• Wheels
• Front Wheel Size (in): 20 x 9.0
• Rear Wheel Size (in): 20 x 9.0
• Spare Wheel Size (in): - TBD -
• Front Wheel Material: Aluminum
• Rear Wheel Material: Aluminum
• Spare Wheel Material: - TBD -
• Steering
• Steering Type: Electric Rack & Pinion
• Steering Ratio (:1), On Center: - TBD -
• Steering Ratio (:1), At Lock: - TBD -
• Turning Diameter - Curb to Curb (ft): 47.2
• Turning Diameter - Wall to Wall (ft): - TBD -
• Frame
• Frame Type: Hydroformed
• Fuel Tank
• Fuel Tank Capacity, Approx (gal): 26
• Fuel Tank Location: - TBD -
• Exterior Dimensions
• Wheelbase (in): 143.50
• Length, Overall w/o rear bumper (in): 229.50
• Width, Max w/o mirrors (in): 80.00
• Height, Overall (in): 73.97
• Overhang, Front (in): - TBD -
• Overhang, Rear w/o bumper (in): - TBD -
• Front Bumper to Back of Cab (in): 150.40
• Cab to Axle (in): 31.97
• Cab to End of Frame (in): - TBD -
• Ground to Top of Load Floor (in): 34.3
• Ground to Top of Frame (in): - TBD -
• Frame Width, Rear (in): - TBD -
• Ground Clearance, Front (in): 8.90
• Ground Clearance, Rear (in): 8.90
• Cargo Area Dimensions
• Cargo Box Length @ Floor (in): 69.33
• Cargo Box Width @ Top, Rear (in): - TBD -
• Cargo Box Width @ Floor (in): - TBD -
• Cargo Box Width @ Wheelhousings (in): 51.03
• Cargo Box (Area) Height (in): 21.10
• Tailgate Width (in): - TBD -
• Cargo Volume (ft³): 53.40
• Ext'd Cab Cargo Volume (ft³): - TBD -
• Interior Dimensions
• Passenger Capacity: 6
• Front Head Room (in): 42.80
• Front Leg Room (in): 45.27
• Front Shoulder Room (in): 66.03
• Front Hip Room (in): 60.73
• Second Head Room (in): 40.50
• Second Leg Room (in): 40.93
• Second Shoulder Room (in): 65.73
• Second Hip Room (in): 60.27
• Summary

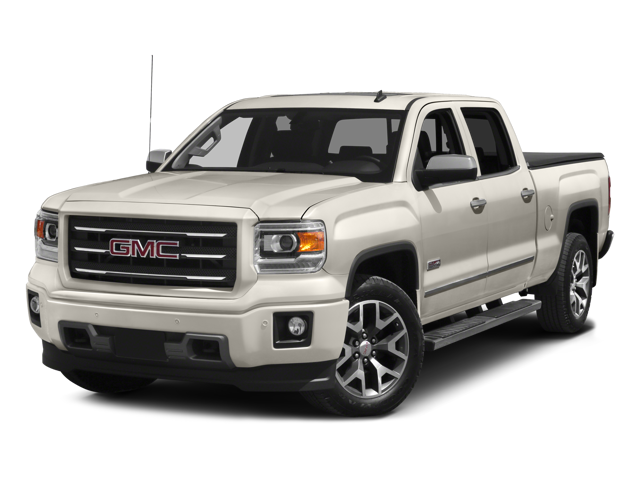

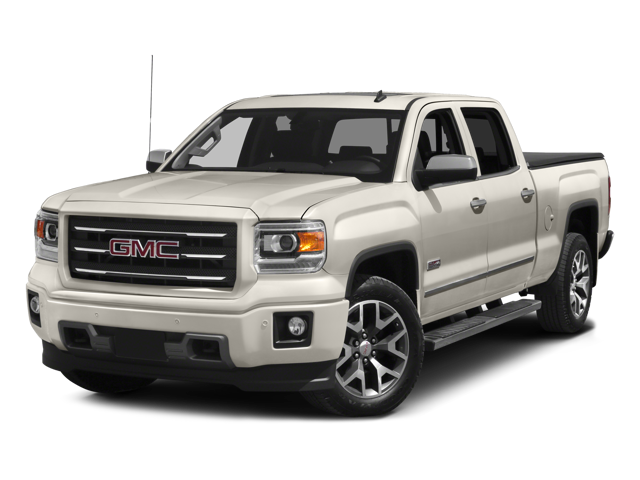

• Vehicle Name: GMC Sierra 1500
• Body Style: Crew Cab Pickup
• Body Code: E63
• Emissions
• EPA Greenhouse Gas Score: - TBD -
• Tons/yr of CO2 Emissions @ 15K mi/year: 10.0
